SE Series VFD

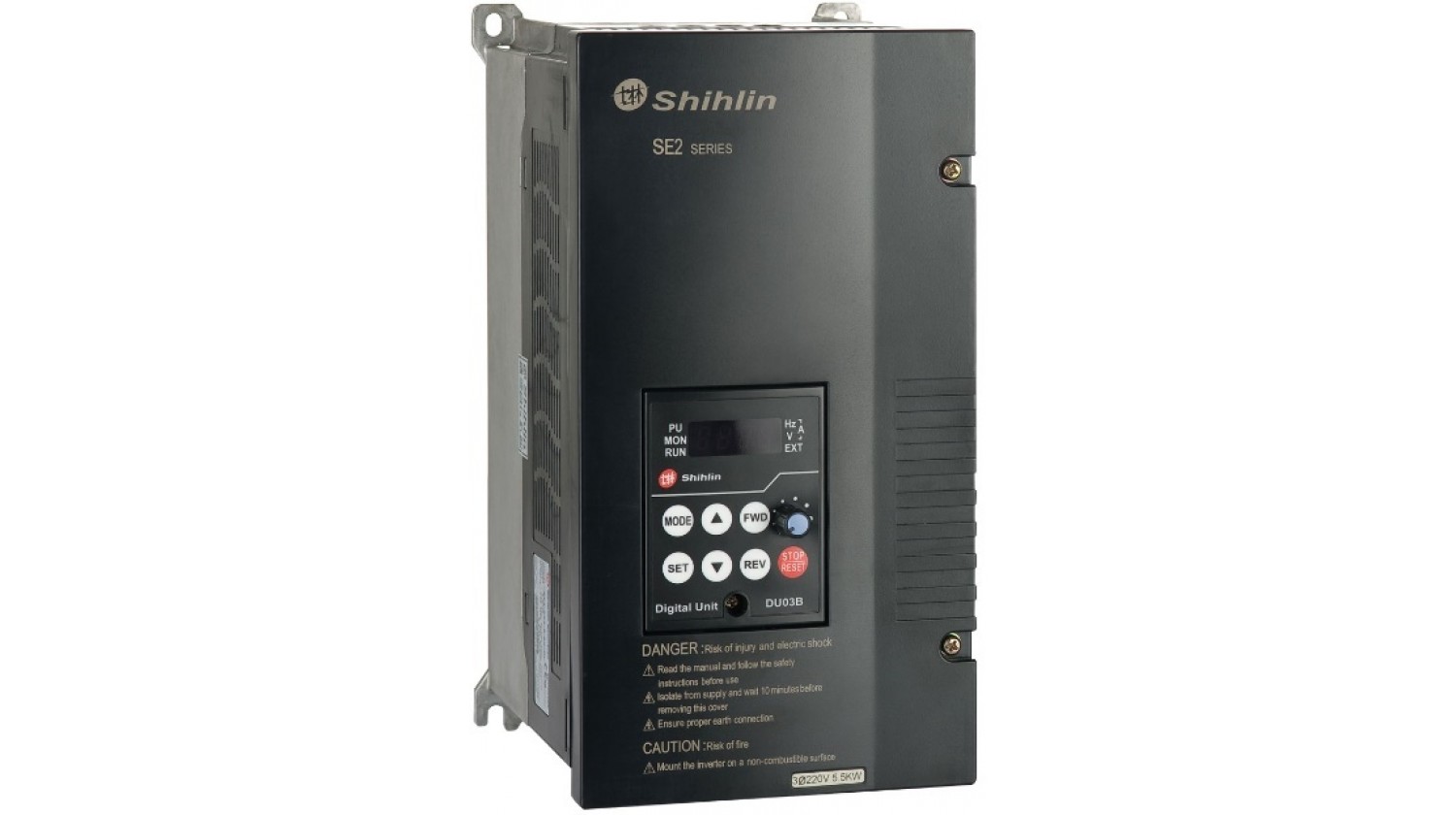

Shihlin SE SE2-043-5-5K-DL, 5.5 kw ,380v

Input: 380 Volt 3 PHASE

Output: 0-380 Volt 12.0 Amper

Control method: SVPWM control, V/F control, facility vector control, Sensorless vector control.
Output frequency range: 0.2~1000Hz (The starting frequency setting range is 0~600Hz).
Digital setting: When P.187=0, if the frequency set value is below 100Hz, the resolution will be 0.01Hz. If the
frequency set value is above 100Hz, the resolution will be 0.1Hz. When P.187=1, the resolution of frequency will be 0.1Hz.
Analog setting: When setting DC 0~5V signals, the resolution will be 1/500;
When setting DC 0~10V or 4~20mA signals, the resolution will be 1/1000.
Acceleration/deceleration curve characteristics:
The resolution (0.01s/0.1s) of acceleration/deceleration time (P.7, P.8) is switched by P.21. The setting range has 0~360s or 0~3600s for selection. And dierent acceleration/deceleration curve model can be selected by P.29.
Protection mechanism / Alarm function
Output short circuit protection, Over-current protection, P-N over-voltage protection, undervoltage protection, motor over heat protection (P.9), IGBT module over heat protection, braking transistor abnormality protection, communication abnormality protection, etc. For Shihlin drive fault codes >

* High starting torque, 150%/1Hz and 200% /3Hz
* With auto-tuning function
* Output frequency from 0.2Hz to 1000Hz
* Speed accuracy:less than 1% with 0~100% load variation
* High-precision static motor parameter autotuning function
* Excellent performance with load capacity of 200%/1s
* Hardware protection design including ground short circuit protection, output short circuit protection, analog in error
Main Features Application
Robot Arm Plating Machine Grinding Machine ,Wood processing Machine Printing Machine Extruder

 Not for solar energy or pump. Solar MPPT Drive

* Built-in RS-485 communication interface
*Support MODBUS and Shihlin communication protocol
* Built-in brake resistor
* A build in EMC input lter is available
* Energy saving function realizes power-saving control
* Constant pressure setting for water pump
* Support various expansion card: I/O card, RS-485/422 card, 4-20mA power card

High-performance sensorless vector control technique
- It is good choice for high-speed motor applications, such as engraving machines, grinders, centrifuges, etc.

Time accumulation: the accumulated operating time of the frequency inverter can be displayed.
- Password protection: It provide 4-digital password to restrict theread and write of parameters, and prevent operative mistakes.

+ Shihlin SE2 User manual >

- 5.5 KW VFD Prices (all model)

++ Shihlin inverter price list

+ Shihlin VFD Main page

++ VFD Main Page

---------

Editor's note: Friends, I have been using the Shihlin SE2 Series in many applications since its release. This series has been able to work very successfully in impact machine systems or where low speed high torque is required. You'll find high performance on the SE that you won't find in any other shihlin drive.
Although we have many drivers on our website, there is only 1 alternative product at this level. (see application devices)

Note of the store: Dear members, sometimes the stocks of products may drop to zero temporarily due to reasons originating from the supplier company. In these cases, we undertake to provide the same power driver with the price written here, even if the price is higher than the alternative products in our store. (Limited to a maximum of 5 pieces)
