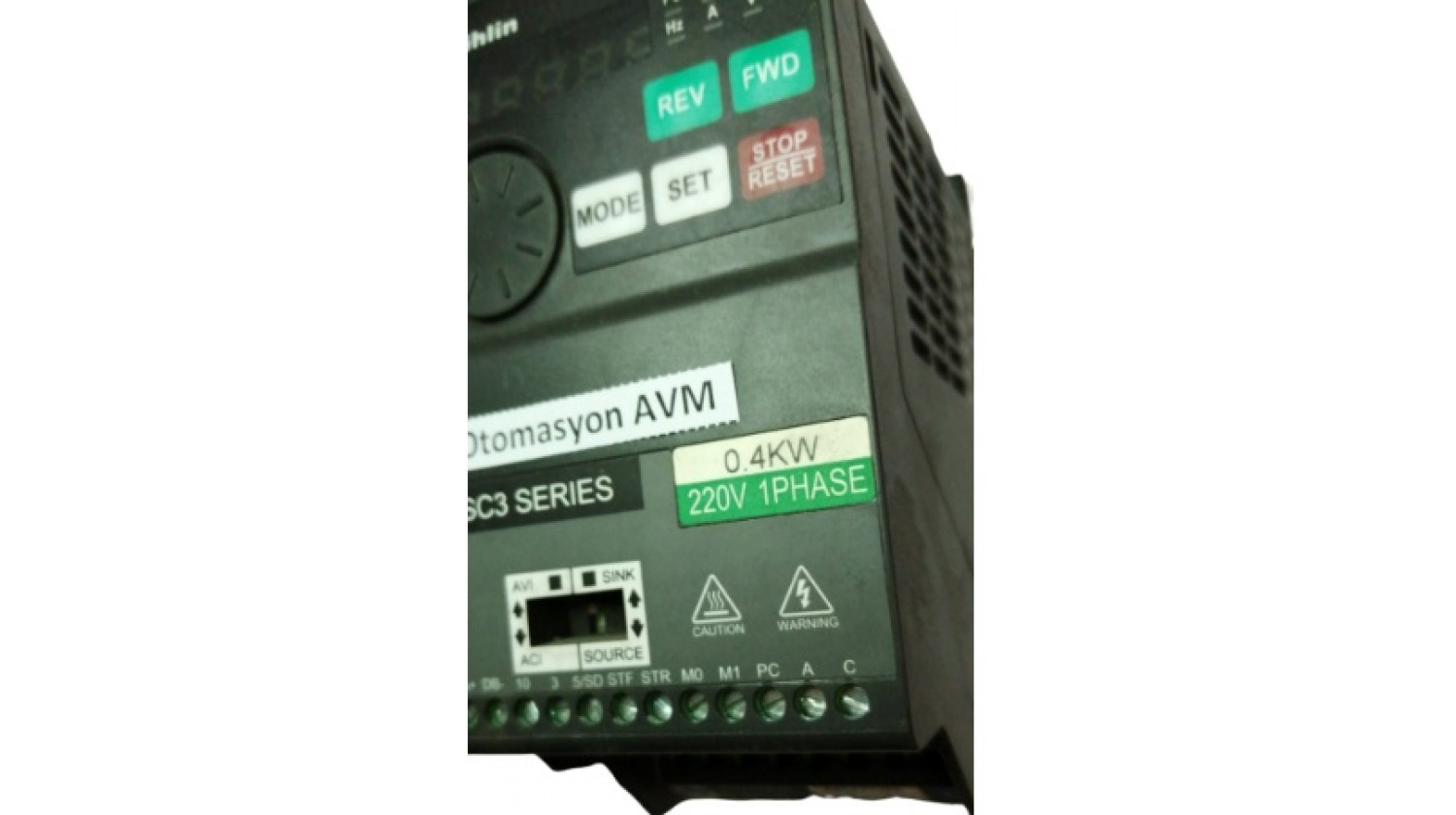

Welcome to our Shihlin SC3-043-0.75K vfd product page

Rated power voltage (Vac): 380 480V 50Hz / 60Hz
Rated output current (A): 2.6 Amper
Applicable motor capacity (kW): 0.75 KW

Control method: SVPWM control, V/F control, General magnetic vector control
Output frequency range: 0~650 .00 Hz

** SC3 not For solar pump . MPPT (PV) vfd models >

Frequency setting resolution
Digital setting:
The frequency is set within 100Hz , the resolution is 0. 0 1Hz
The frequency is set more than100Hz , the resolution is 0.1Hz
Analog setting
DC 0~5V or 4 20mA s ignal , 11 bit
DC 0~10V signal , 12 bit

Output frequency accuracy
Digital setting: Maximum target frequency 0.01%
Analog setting: Maximum target frequency 0. 1
Start torque: 180% 3Hz, 200% 5Hz Under the condition of g eneral magnetic vector control

V/ F characteristics: Constant torque curve, variable torque curve , five point curve

Acceleration / deceleration curve characteristics
Linear acceleration /deceleration curve , S pattern acceleration /deceleration curve 1 & 2 & 3
Drive motor: Induction motor IM
Stalling protection: The stalling protection level can be set to 0~250 %( 06 01 P.22 The default value is 200

Target frequency setting
Operation panel setting: DC 0~5V/10V signal, DC 4~20 mA analog signal, multiple speed stage level setting, commun ication setting.

Communication function
RS 485 communication can select Shihlin/Modbus communication protocol , communication speed 115200bps or lower

Protection mechanism /alarm function
Output short circuit protection, Over current protection, over voltage protection, under voltage protection, motor over heat protection (06 00(P.9)), IGBT module over heat protection, communication abnormality protection.

-

Output frequency, target frequency, steady output frequency
+ The actual output current frequency of the inverter is called “output frequency.”

+ The frequency set by user ( via operation panel , multi speed terminals, voltage signal, and current signal or communication settings) is called “target frequency.”

+ When the motor starts running, the output frequency of the inverter will gradually accelerate to the target frequency before it finally runs steadily at the target frequency. This output frequency is called “stead output frequency.”

 Parameter settings
+ Detail explanation on parameter setting s are provided in Chapter 5.For users who are not familiar with these settings, arbitrary adjustment of the parameter may result in abnormal operations. All parameters can be reset to their default values by the parameter of 00 02 . For setting procedures o f this parameter,

 The “operation mode” and “working mode” of the operation panel
+ The operating mode determines the reference source for the target frequency and the signal source for starting. A total of nine operating modes are provided in each Shihlin inverter.

+ The operation panel is used mainly for monitoring the numeric values, setting parameters and target frequency. There are a total of five working modes on the Sh ihlin operation panel .

 The difference between “terminal name” and “function name”:
+ Printed letters can be found near the terminals of either the control board or the main board. They are used to distinguish each ter minal and care called “terminal name.”

+ For “multi function control terminal” and “multi function output terminal,” besides the terminal name, it is also necessary to define the “function name.” The function name indicates the actual functions of the termin al.

+ When explaining the function for a terminal, the name used is its function name

-

 The difference between “on” and “turn on”:
+ When explaining the function for the “multi function control terminal”, two words “on” and “turn on” are often used:
+ The word “on” is used to indicate that the external switch of the terminal is in close state, and thus it belongs to the description of the state.

+ The word “turn on” is used to describe the action that the external switch of the terminal is shut from the open state to the close state, and thus belongs to the description of action. Similarly, the words “off” and “turn off" belong to the above mentioned states and actions.

-
