Magnetic Fuses
Hi everyone,
Magnetic fuses, also known as magnetic circuit breakers or magnetic blowout fuses, are a type of protective device used in electrical systems to prevent overcurrent and short circuits. They utilize magnetic fields to interrupt the flow of current when it exceeds a predetermined level. Here's a detailed overview of magnetic fuses:
Magnetic fuses are essential components in safeguarding electrical circuits and equipment from damage due to excessive current. They are commonly used in industrial settings, power distribution networks, and various electrical appliances.
Construction:

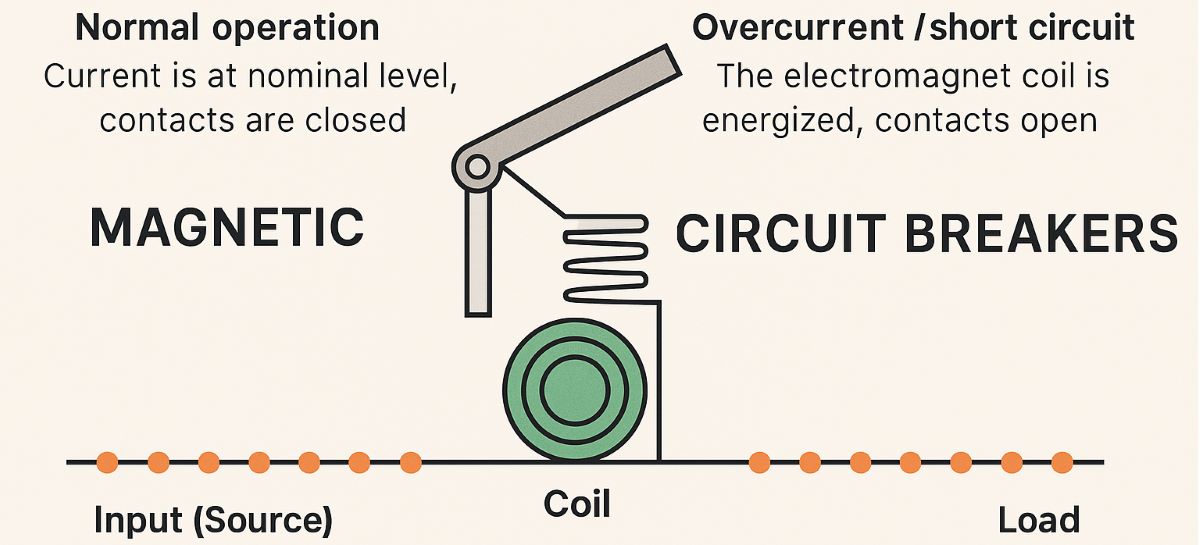

Magnetic Circuit Breaker – Live Current Simulation
Overcurrent/short circuit: The coil’s magnetic field increases, the mechanism opens the contact, and the current flow stops.
Contact Assembly: Consists of movable and fixed contacts that open to interrupt the current flow when the fuse operates.
Magnetic Coil: A coil of wire that generates a magnetic field when current passes through it. The strength of the magnetic field is proportional to the current.
Arc Chute: A chamber that contains and extinguishes the arc formed when the contacts open.
Operation:
When the current flowing through the magnetic coil exceeds a certain threshold, the generated magnetic field becomes strong enough to pull the movable contact away from the fixed contact, opening the circuit and interrupting the current flow. The arc chute helps to quickly extinguish the arc that forms when the contacts separate.
Characteristics:
Instantaneous Tripping: Magnetic fuses are designed to trip instantly when the current exceeds the preset level, providing fast protection against short circuits.
Non-Resettable: Unlike circuit breakers, magnetic fuses are typically not resettable and must be replaced after they have operated.
High Breaking Capacity: Capable of interrupting high fault currents without damage to the fuse or the circuit.
Selection Criteria:
When selecting magnetic fuses, consider the following factors:
Rated Current: Choose a fuse with a rated current that matches or slightly exceeds the normal operating current of the circuit.
Breaking Capacity: Ensure the fuse has a breaking capacity sufficient to handle the highest possible fault current in the system.
Operating Voltage: Select a fuse that is rated for the voltage level of the application.
Physical Size: Consider the size and mounting requirements of the fuse to ensure compatibility with the installation.
Applications:
Magnetic fuses are used in various applications, including:
Industrial Control Panels: To protect motors and control circuits from short circuits.
Power Distribution Systems: To isolate faulted sections and prevent damage to transformers and other equipment.
Automotive Systems: In vehicle electrical systems to protect against overcurrents caused by short circuits or overloads.
Advantages and Disadvantages:
Advantages: Fast response to short circuits, high breaking capacity, and reliable protection.
Disadvantages: Once operated, they need to be replaced, which can lead to downtime and additional maintenance costs.
Maintenance and Safety:
Regular inspection and maintenance are essential to ensure the reliability of magnetic fuses. It's important to replace blown fuses promptly with ones of the correct rating to maintain circuit protection.
In conclusion, magnetic fuses are vital for protecting electrical circuits and equipment from the damaging effects of overcurrents and short circuits. Their fast-acting nature and high breaking capacity make them suitable for applications where rapid and reliable protection is required.
Investigating the Term 'Fuse' Used Both Technically and Socially: Answers to Technical Questions from Our Valuable Members. We have attempted to find answers to questions posed by our valuable members regarding the technical aspects of the term 'fuse.'
+ How should I choose the type of fuse?
- What is an electrical fuse, and what is its primary function?
- What are the differences between different types of fuses (e.g., cartridge fuses, circuit breakers)?
- How can I tell when a fuse needs to be replaced?
- How is the fuse rating (ampere value) determined, and how is it related to the load in a circuit?
- Why does a fuse blow or burn out, and what should I do in that situation?
- What should I consider regarding the placement and maintenance of a fuse box?
- What role do electrical fuses play in home safety?
- What safety precautions should be taken when changing a fuse?
- Are there special types of fuses for high-power-consuming devices?
- What factors should be considered when selecting an electrical fuse?
