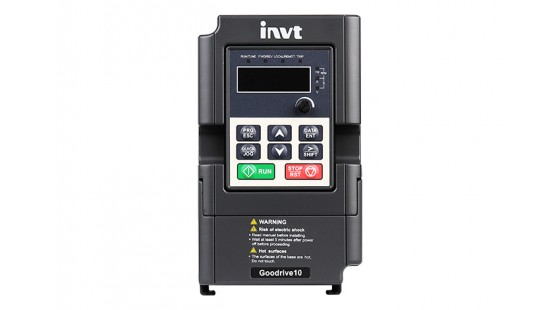

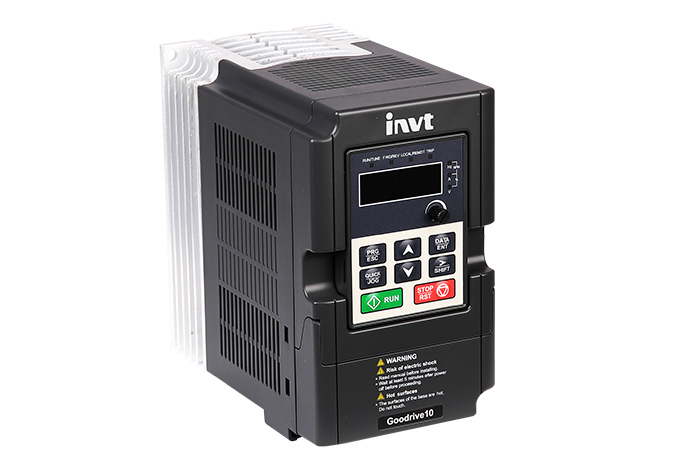

INVT Goodrive10 (GD10) Variable Frequency Drive

INVT Goodrive10 is a compact VFD family intended for small motors and straightforward machine-control applications. It is particularly useful where panel space is limited and the application requires adjustable motor speed, basic automation functions and RS485 communication without moving to a larger drive platform.

GD10 combines SVPWM motor control, analog frequency reference, multi-step speed operation, built-in PID, programmable digital inputs, DC braking and Modbus communication in a small enclosure.

Where the GD10 Fits

The GD10 is aimed at general-purpose applications that do not require a more advanced closed-loop or high-performance vector-control platform. Typical installations include packaging machinery, food-processing equipment, textile machines, centrifugal equipment, engraving machines and wire-cutting systems.

Its compact construction is especially useful in OEM machines and small control cabinets where several devices must share limited panel space.

GD10 Main Functions

- SVPWM control
- 16-step speed operation
- Built-in PID control
- Analog, digital, multi-step, PID and communication-based frequency references
- Standard keypad potentiometer
- External LED keypad support
- Modbus RTU / RS485 communication
- DC braking function
- Automatic voltage regulation
- Overcurrent, overvoltage, undervoltage, overtemperature and overload protection
- Optional EMC filter configurations depending on model

GD10 Voltage and Power Classes

Single-phase 220 V class: 220 V (-15%) to 240 V (+10%), 0.2–2.2 kW
Three-phase 220 V class: 220 V (-15%) to 240 V (+10%), 0.2–2.2 kW
Three-phase 380 V class: 380 V (-15%) to 440 V (+10%), 0.75–2.2 kW
Input frequency: 47–63 Hz
Maximum output frequency: 400 Hz
Speed range: up to 1:100

Overload Capability

150% of rated current: 1 minute
180% of rated current: 10 seconds
200% of rated current: 1 second

GD10 Control Inputs and Outputs

Analog input: 1 × 0–10 V / 0–20 mA
Analog output: 1 × 0–10 V / 0–20 mA
Digital inputs: 5 programmable digital inputs
Digital output: 1 programmable Y output
Relay output: 1 programmable relay output
Communication: RS485 / Modbus RTU

Cooling and Braking

Selected low-power 220 V GD10 models from 0.2 to 0.75 kW use natural cooling. Higher-power 220 V units and the 380 V models use forced-air cooling.

A -B suffix in the GD10 model code identifies versions equipped with an integrated braking unit. Where an external braking resistor is required, its resistance and power rating must be selected according to the exact GD10 model and the braking duty of the machine.

GD10 Programmable Digital Input Functions

The S1–S5 digital inputs are configured through the GD10 parameter set. They can be used for run commands, JOG operation, fault reset, multi-step speed selection, PID control, counter functions and command-source switching.

0: No function
1: Forward run
2: Reverse run
3: Three-wire control
4: Forward JOG
5: Reverse JOG
6: Coast to stop
7: Fault reset
8: Run pause
9: External fault input
10: Frequency UP
11: Frequency DOWN
12: Clear UP/DOWN frequency adjustment
13: Switch between frequency references A and B
14: Switch between combination reference and reference A
15: Switch between combination reference and reference B
16: Multi-step speed terminal 1
17: Multi-step speed terminal 2
18: Multi-step speed terminal 3
19: Multi-step speed terminal 4
20: Multi-step speed pause

21: ACC/DEC time selection 1
25: PID control pause
26: Traverse pause / hold current frequency
27: Traverse reset / return to center frequency
28: Counter reset
30: Prevent ACC/DEC change
31: Counter trigger
33: Temporarily cancel UP/DOWN frequency adjustment
34: DC brake activation
36: Transfer run-command source to keypad
37: Transfer run-command source to terminals
38: Transfer run-command source to communication

Note: The GD10 digital-input function numbers are not continuous. Functions should be assigned to S1–S5 through the relevant parameter group according to the machine wiring and required operating sequence.
