This VF-S15 drive uses sinusoidal PWM control to regulate the output voltage, which can be adjusted within the range of 50 to 330V (240V class) and 50 to 660V (500V class) by correcting the supply voltage. The output frequency range is 0.1 to 500.0Hz, with a default setting of 0.5 to 80Hz and a maximum frequency of 30 to 500Hz.

The drive has several voltage/frequency characteristics, including V/f constant, variable torque, automatic torque boost, vector control, automatic energy-saving, dynamic automatic energy-saving control (for fan and pump), PM motor control, V/F 5-point setting, Auto-tuning, base frequency (20-500Hz) adjusting to 1 & 2, torque boost (0-30%) adjusting to 1 & 2, and adjusting frequency at start (0.1-10Hz).

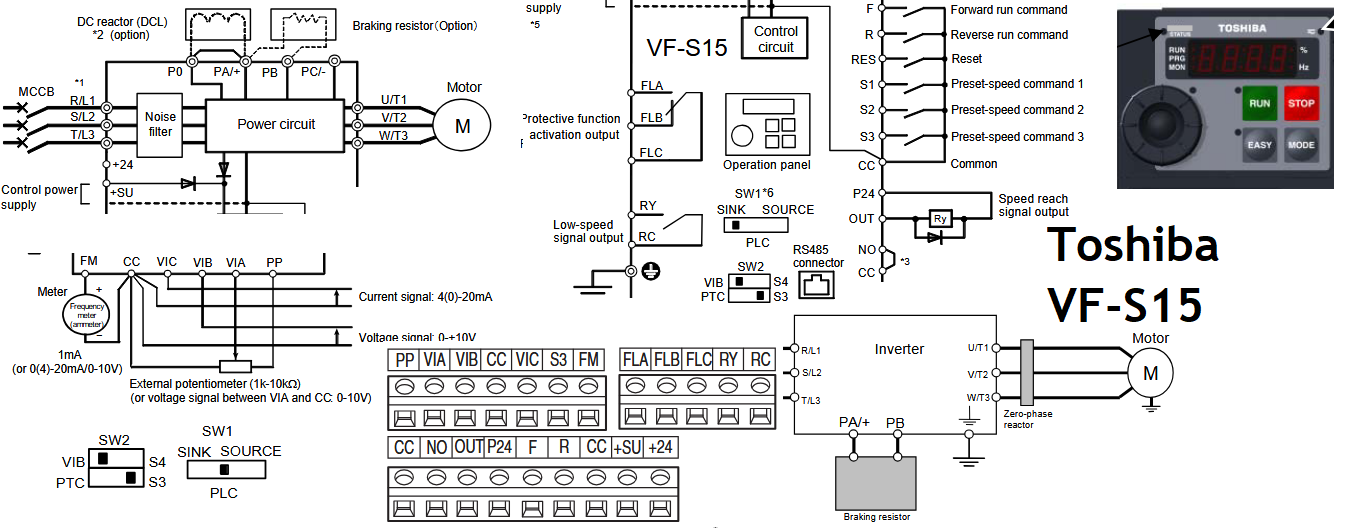

The drive has various input and output terminal functions that are programmable, and it can be set to protect against stall prevention, current limitation, over-current, output short circuit, over-voltage, over-voltage limitation, under-voltage, ground fault detection, input phase failure, output phase failure, overload protection by electronic thermal function, armature over-current at start-up, load-side over-current at start-up, over-torque, undercurrent, overheating, cumulative operation time, life alarm, emergency stop, braking resistor overcurrent/overload, and various pre-alarms.

The drive has monitoring functions for output frequency, frequency command value, operation frequency command, forward/reverse run, output current, input voltage (DC detection), output voltage, torque, inverter load factor, motor load factor, braking resistor load factor, input power, output power, information on input terminals, information on output terminals, overload and region setting, version of CPU1, version of CPU2, PID feedback value, stator frequency, causes of past trips 1 to 8, parts replacement alarm, cumulative operation time, number of starting.

+ Toshiba S15 VFD Canopen Manual  (pdf)

+ Toshiba S15 VFD Canopen .eds files  (zip)

+ Toshiba S15 VFD  CClink manual  (pdf)

+ Toshiba S15 VFD User manual (detail) (pdf)

+ Toshiba S15 VFD User Manual (detail) 2  (pdf)

+ Toshiba S15 VFD Devicenet manual  (pdf)

+ Toshiba S15 VFD devicenet .eds files  (zip)

+ Toshiba S15 VFD Low voltage operation  (pdf)

+ Toshiba S15 VFD Ethercat  (pdf)

+ Toshiba S15 VFD Ethercat .xlm files  (zip)

+ Toshiba S15 VFD Ethernet modbus .eds files  (zip)

+ Toshiba S15 VFD Ethernet modbus tcp manual  (pdf)

+ Toshiba S15 VFD remote keypad RKP002Z  (pdf)

+ Toshiba S15 VFD Hit and stop control Instruction Manual  (pdf)

+ Toshiba S15 VFD Quick start  (pdf)

+ Toshiba S15 VFD Catalog  (pdf)

+ Toshiba S15 VFD Explanation of Load reduction  (pdf)

+ Toshiba S15 VFD Parameter List  (pdf)

+ Toshiba S15 VFD PID  (pdf)

+ Toshiba S15 VFD Profibus DP  (pdf)

+ Toshiba S15 VFD Profibus .gsd files  (zip)

+ Toshiba S15 VFD RS485 modbus  (pdf)

-----------
