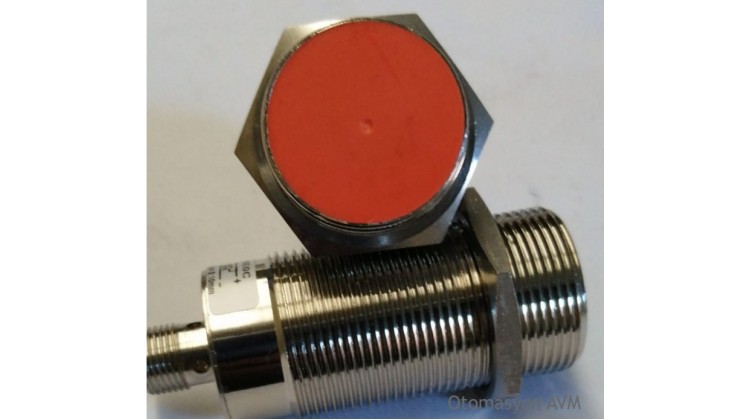

NPN-NO-3 Wire M30 Inductive Sensor is a sensor type that works with NPN transistor and has a normally open contact type. It is designed as a 3-wire M8 type connector sensor.

- The sensor can detect metal objects up to 10mm and can operate in a voltage range of 10-30V DC with an output current of 100mA.

- You can see the connection diagram of the product in the picture provided.

- It has a normally open output type and (-) negative voltage output. (NPN vs PNP)

- There is an LED status indicator for the output of the sensor.

- The sensor is protected against short circuits and reverse polarity, increasing reliability and ensuring long life.

- The body of the sensor is made of metal and has a flat head, making it sturdy and durable.

- The sensor is nickel-plated and stainless, which prolongs its lifespan and makes it resistant to rust.

- It has a metric 30mm body diameter and can detect objects at a distance of 2mm.

- This proximity sensor is only sensitive to metal objects. (what is inductive sensor?)

The sensor can operate in temperatures ranging from -25 to +70 degrees Celsius and is suitable for use in environments with oil, mud, and water, thanks to its IP67 protection rating.

- It has a 1-year warranty, fast response time of 2KHz, and anti-parasitic feature that minimizes erroneous signals caused by external interference.
- Designed for industrial environments, the sensor's output can be connected to a contactor (24DC) or DC relays without diodes. It is also suitable for counter and PLC inputs.

+ If you have any questions or feedback about our product, please leave a comment in the comment section.
++ This sensor is CE certified and complies with European standards.

+ 30 mm inductive main page >

+ inductive sensor main page >

+ Connector for sensor >


Editor's note: Derell 3 Wire M30 inductive sensor is one of the most popular models on the market due to its affordability and durability. The product's warranty and technical support services are also reliable. Its high counting frequency makes it suitable for tachometer and counter applications. We have not received any negative feedback from our customers, so we believe that this sensor is a good choice. You can also check out our other inductive sensor models with different detection ranges in our main categories.

Please note that all installation processes of DERELL inductive sensor models must be performed by expert technical personnel. The installation should always comply with the relevant ministry laws and regulations (2006/42/AT). Otomasyon AVM does not accept any responsibility for installations or individuals that violate local laws or regulations (for foreign sales). If the instructions provided by DERELL Electronics are not followed, problems outside the scope of the warranty may occur. Detailed information on this issue can be found in the user manual. For more information, please contact info@otomasyonavm.com.
