Dbu Braking Unit

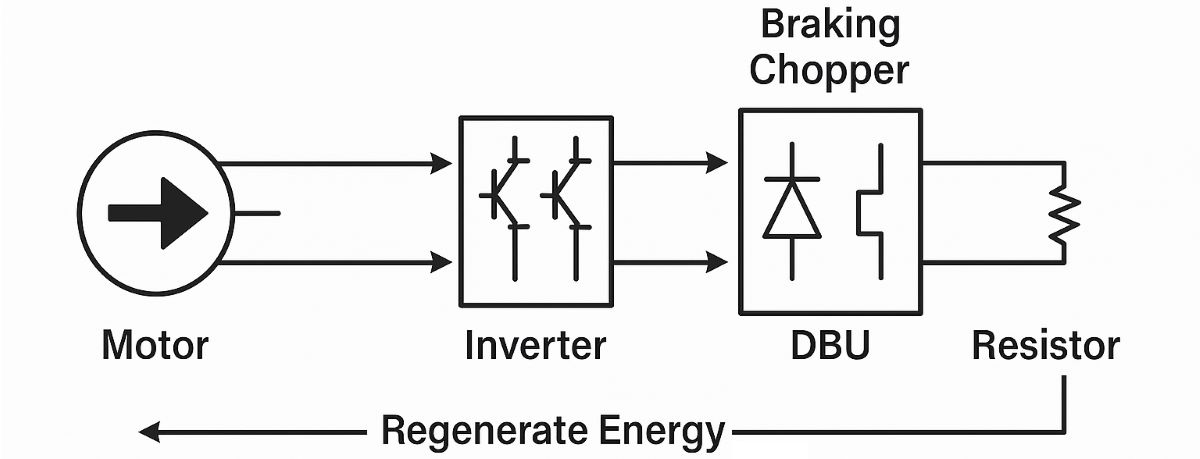

A DBU (Dynamic Braking Unit) is a device used in conjunction with a variable frequency drive (VFD) to quickly and effectively brake an electric motor. This unit dissipates the energy from the motor and its load by rapidly dispersing the kinetic energy through a resistor or other dissipative elements. DBUs are commonly used in applications where the motor needs to be stopped quickly, such as in conveyor systems or material handling equipment. Different types include resistor-based units, chopper units, or regenerative units, and they can be easily installed on various motors and inverters. Dynamic braking is a reliable method to enhance motor speed control and braking performance.
An external braking resistor is a device used to slow down or stop an electric motor in applications where a dynamic braking unit (DBU) is employed. During braking, the motor's kinetic energy is converted into electrical energy within the braking resistor, which then absorbs this energy.
A braking resistor is used when the motor speed drops too quickly or when the motor's braking capability is insufficient. Therefore, if you need to stop or slow down a motor, it is recommended to use a dynamic braking unit.
Dynamic braking units typically include a braking resistor, so there is usually no need to install an external braking resistor. However, depending on the specifics of your application, you may require an external braking resistor. In such cases, attention should be paid to the motor's specifications, application requirements, and proper sizing of the braking resistor.
