what is flux vector control?
Flux vector control is a method of controlling the torque and speed of an electric motor by adjusting the flux, or magnetic field, in the motor. It is often used in high-performance applications, such as electric vehicles or industrial automation systems, where precise control of the motor is required.
In a motor with flux vector control, the flux is controlled by adjusting the phase of the current supplied to the motor. By adjusting the phase of the current, the direction and magnitude of the flux can be controlled, which in turn allows the torque and speed of the motor to be precisely regulated.
Flux vector control is typically implemented using advanced control algorithms and specialized power electronics, such as pulse width modulated (PWM) inverters. It allows for highly accurate control of the motor, and can significantly improve the performance and efficiency of the system in which it is used.
One of the main advantages of flux vector control is that it can deliver high torque even at very low speeds. Traditional V/f control methods lose efficiency and accuracy at low speeds, but flux vector control can operate almost with servo-like precision. This is why it is widely adopted in applications such as cranes, elevators, and extruders where constant torque and smooth operation are critical.

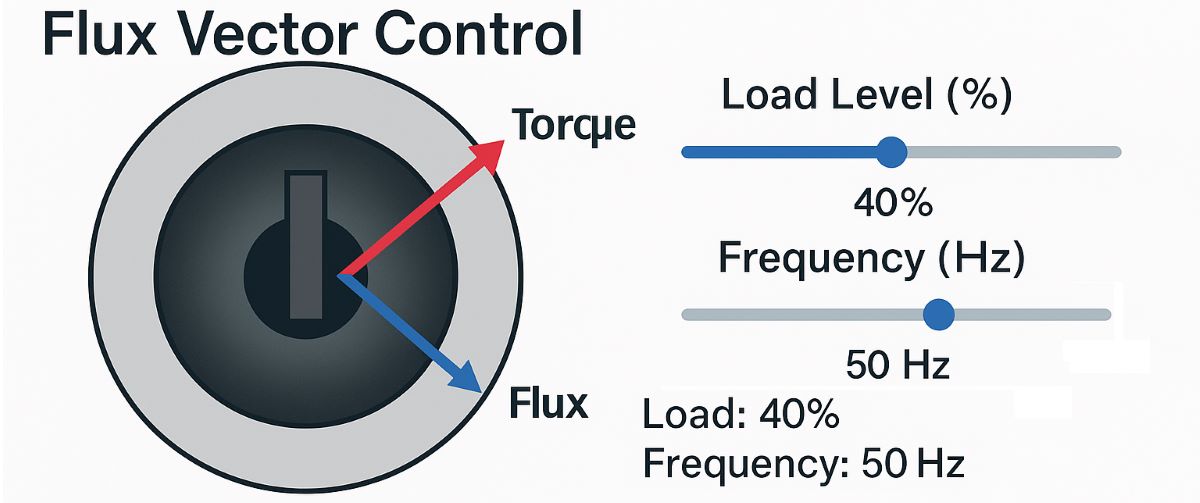

Flux Vector Control Simulation
In industrial practice, closed-loop feedback is often used with flux vector control. Devices such as encoders or resolvers provide rotor position information to the drive, which then adjusts its output to maintain precise torque and speed. This ensures robust operation even when the system faces varying loads or disturbances.
Another key benefit is energy efficiency. By minimizing unnecessary magnetic flux when full torque is not needed, the system reduces power losses and keeps the motor cooler. This translates into lower operating costs, improved reliability, and extended motor lifetime — a major advantage in continuous industrial operations.
Overall, flux vector control has become a standard in modern VFDs. It provides a balance of precision, efficiency, and energy savings, making it one of the most important motor control strategies in today’s industrial and automotive sectors.
