What is Isolation Transformers?
Hi everybody,

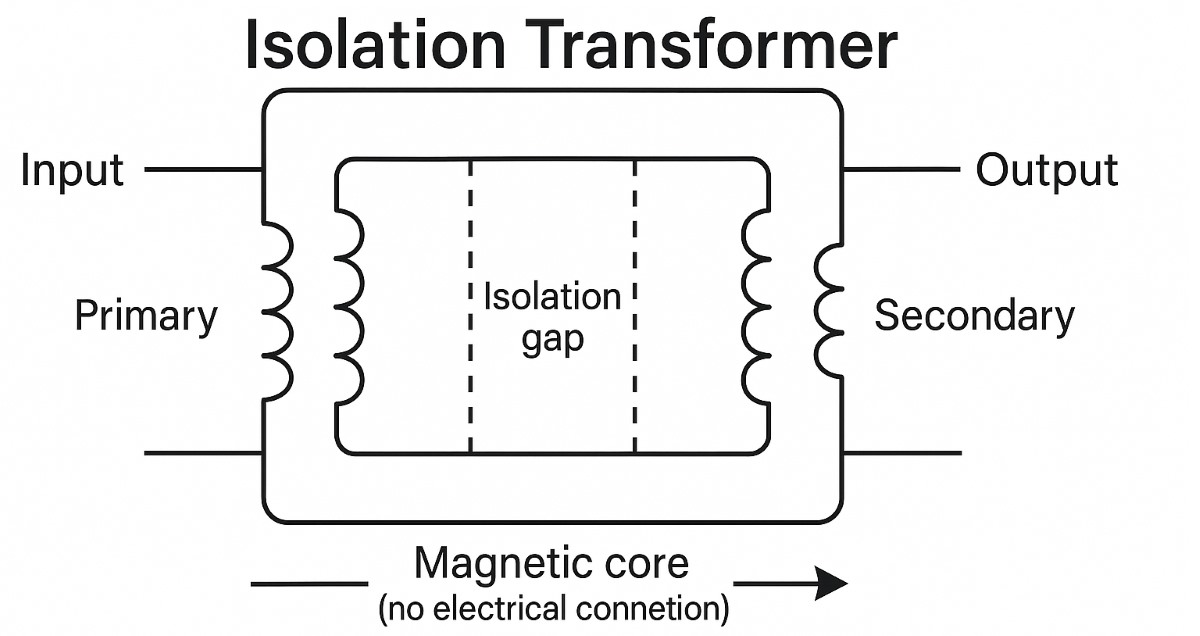

Isolation transformers are a type of transformer used to isolate a circuit from alternating current (AC) power sources, providing electrical isolation between the input and output. Unlike auto-transformers, isolation transformers have separate primary and secondary windings that are not electrically connected but are magnetically coupled. This means that there is no direct electrical path between the input and output, which provides several advantages.
Key Characteristics of Isolation Transformers:
Electrical Isolation: One of the most significant features is that they provide electrical isolation between the primary and secondary circuits, reducing the risk of electric shock and preventing noise or voltage spikes from passing through.
Separate Windings: They have distinct primary and secondary windings, ensuring that the input and output circuits are electrically isolated from each other.
Noise Reduction: They can filter out electrical and RF (radio frequency) noise from the signal, making them useful in sensitive electronic applications.
Voltage Conversion: Like other transformers, they can also step up or step down voltage levels, although this is not their primary function.
Safety: By isolating circuits, they improve electrical safety, making them ideal for use in medical, industrial, and laboratory environments.
Applications:
Medical Equipment: Isolation transformers are used in medical devices to ensure patient safety by isolating the device from the electrical supply.
Audio Systems: They are used in audio processing to eliminate ground loops and reduce noise.
Industrial Machines: They provide an extra layer of safety in industrial settings, protecting against electrical shocks.
Laboratories: Used in research labs to isolate electrical devices, thereby improving the accuracy of measurements and tests.
Power Supplies: Some power supply units use isolation transformers to improve safety and noise performance.
Limitations:
Size and Weight: Isolation transformers can be relatively large and heavy, especially for higher power ratings.
Cost: They are generally more expensive than other types of transformers due to the added material and construction complexities.
Efficiency: They might not be as efficient as auto-transformers for the same power rating.
Isolation transformers are an essential tool in various applications where electrical isolation is critical for safety or performance reasons. However, they come with some trade-offs in terms of size, weight, and efficiency.
