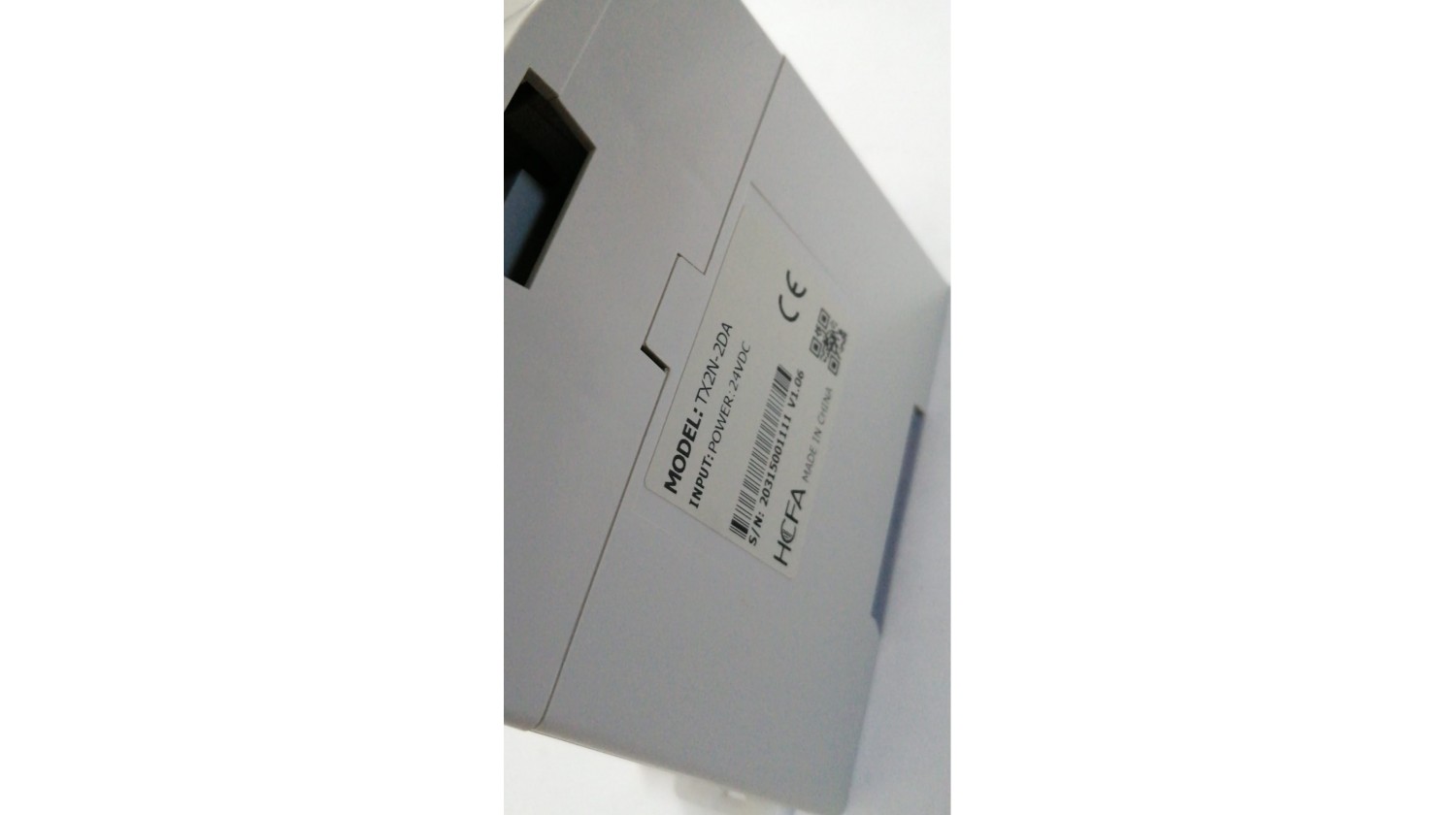

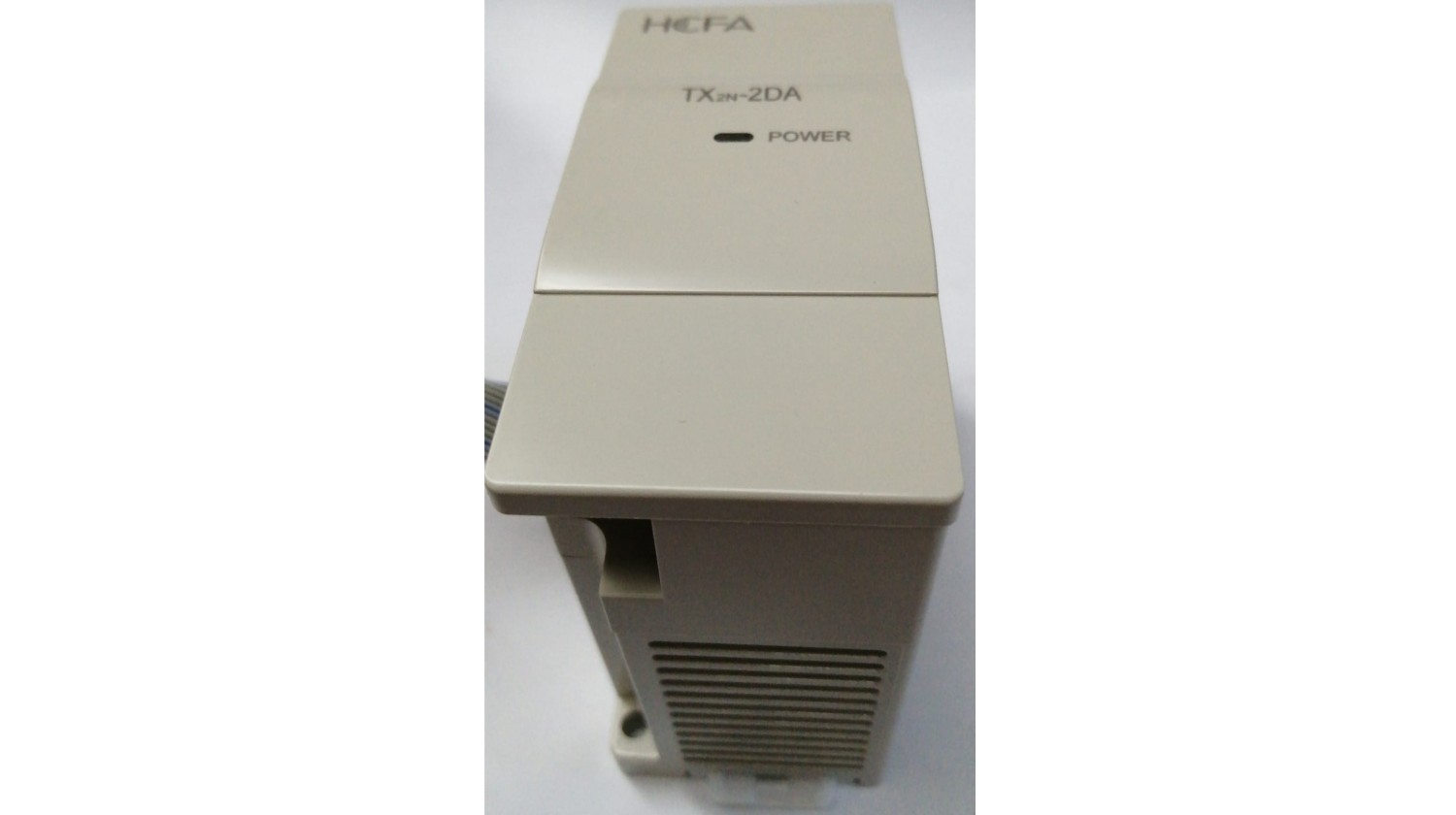

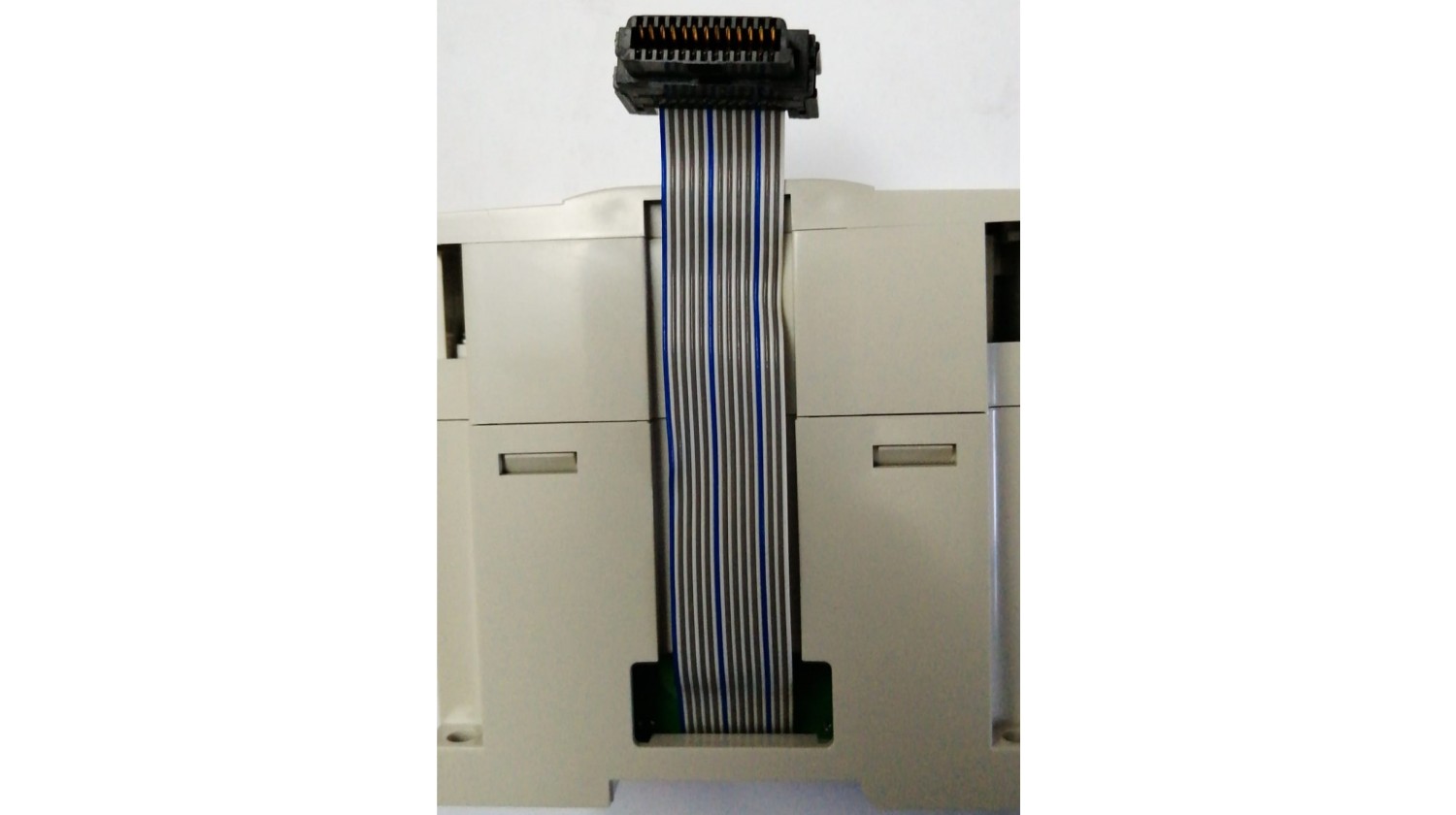

The TX2N-2DA Analog output block is a device used in industrial control systems. Here are some key characteristics of the device:

Output channels: There are two output channels available for voltage (0-10V DC; 0-5V DC) or current (4-20mA DC). The analog output can select the voltage or current output mode.

Range of analog input: The range of analog input is 0-10V DC, 0-5V DC (external load resistance 2k-1MΩ) and 4 to 20mA DC (external load resistance 400Ω or less).

Digital output: The device has a 12 bit binary resolution. The conversion time for one channel is 4ms.

Isolation: The photocoupler is used to isolate the analog input area from the PLC. The DC/DC converter is used to isolate the power supply from the analog input area. However, channels are not insulated from each other.

Power supply: The device can be powered using either DC5V/30mA (internal power supplied from the main unit) or DC24V/85mA (internal power supplied from the main unit).

Occupied I/O points: The device occupies either 8 input or output points and can be either inputs or outputs.

Applicable PLC: The device is compatible with LX1N/HCA2/HCA8/HCA8C/HCA2C (conversion blocks are needed).

Weight: The device weighs 0.2kg.

Overall, the TX2N-2DA Analog output block is a versatile and accurate device that can be used in a variety of industrial control systems.

Editor notes: "Dear friends, this module and its supported PLC models have now been replaced by newer models. If you are starting an automation project from scratch, we recommend that you choose our newer models instead. Thank you for your understanding!"

-------

--
