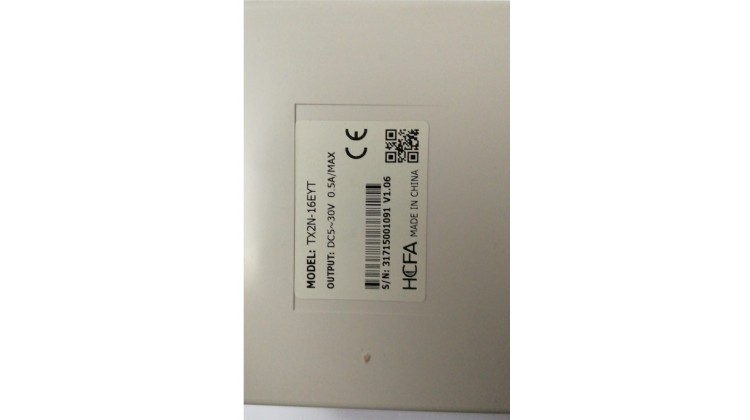

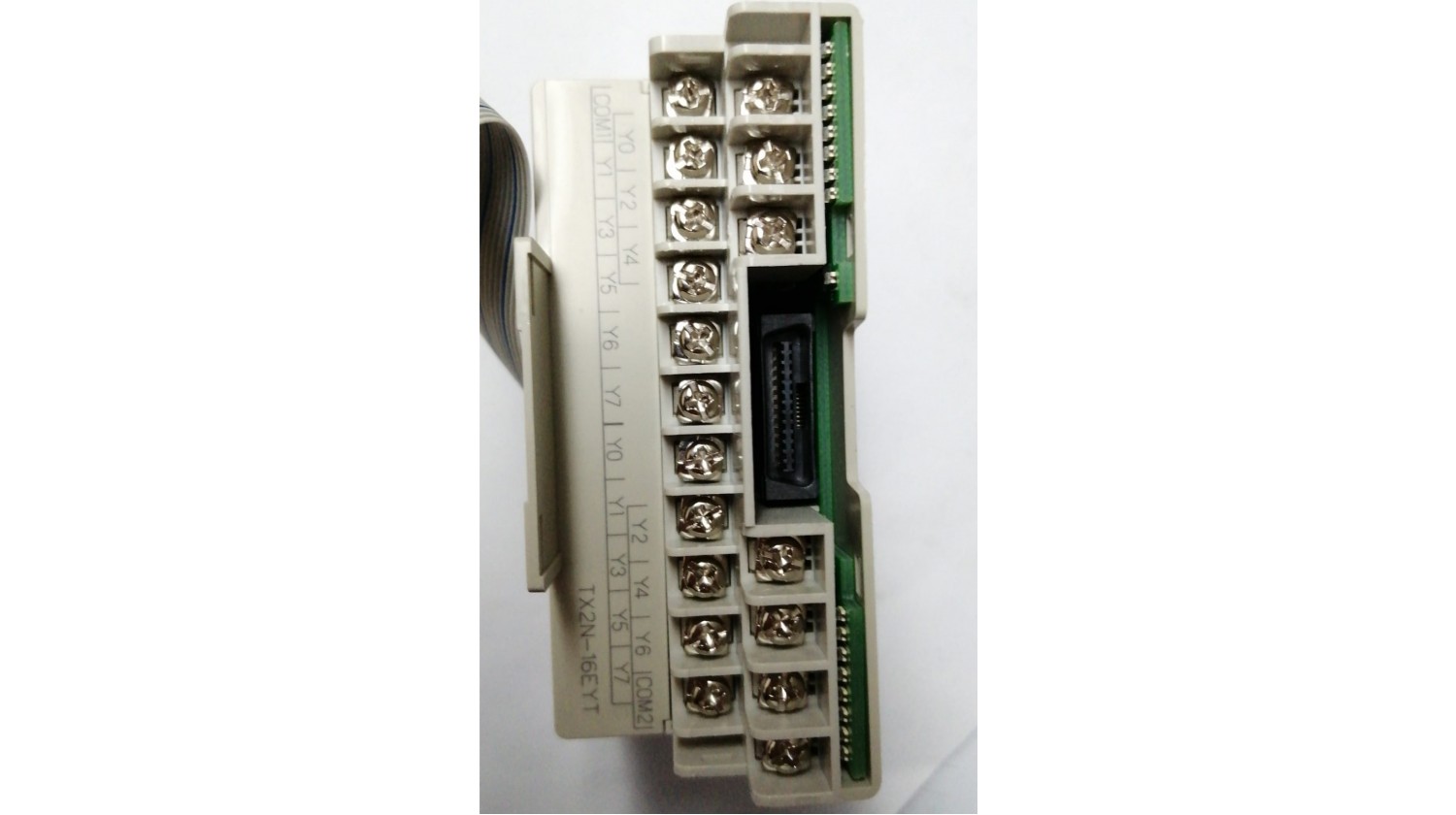

TX2N-16EYR is a Transistor output (16 point) extension block manufactured by HCFA. This extension block is designed to increase the output capacity of a programmable logic controller (PLC) by providing an additional 16 output points (relay type).

The TX2N-16EYR block is compatible with several HCFA PLCs, including the LXN** series. The block can be easily connected to a PLC through its expansion port, and it can be installed either locally or remotely, depending on the application.

The block has 16 output points that can handle digital signals, and each point is isolated to prevent interference between different output signals. The output points are designed to be fast and reliable, and they can be used for a variety of applications such as controlling the state of a relay or driving a motor.

The TX2N-16EYR extension block has a built-in power supply that can be used to power all modular extension units connected to the base unit. The block also has integrated inputs that can be used to control the state of the output points.

The block features transistor outputs, and the maximum ON voltage for the relay version is generally <30V DC. The maximum output current per output point is 0.3A for Y0 and Y1, and 0.5A for all others. The maximum switching power is 80VA for inductive loads and 100W for lamp loads.

The response time for the output version is 10ms, and the life of the contacts is the same as the base unit. The mechanical data for the block is 0.3kg in weight and 40mm x 90mm x 87mm in size.

Editor notes: "Dear friends, this module and its supported PLC models have now been replaced by newer models. If you are starting an automation project from scratch, we recommend that you choose our newer models instead. Thank you for your understanding!"

-------

--
