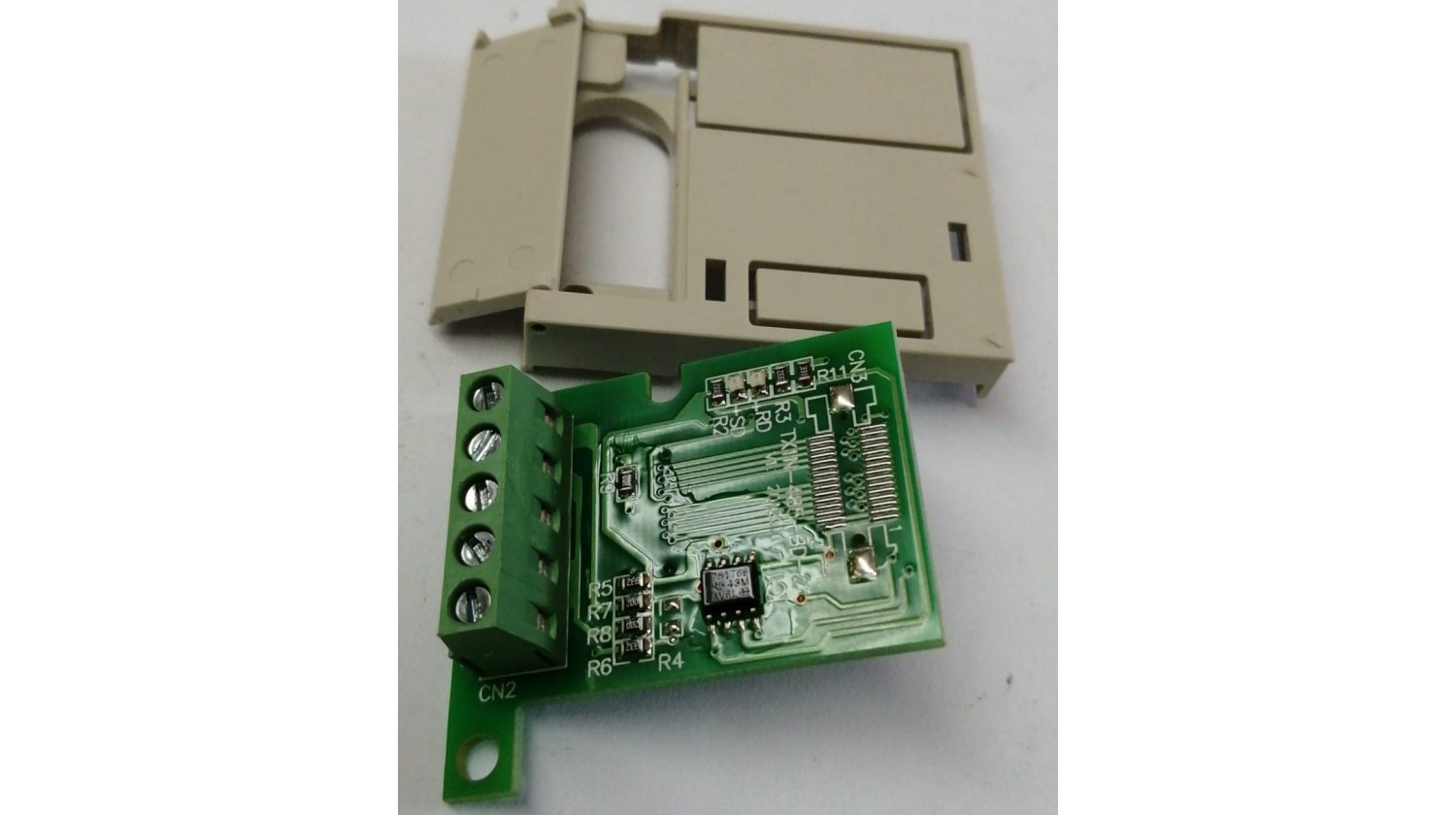

The TX1N-485-BD-2 is an RS485 serial communication expansion board designed for use with the LX1N/LX2N series PLCs. This expansion board provides an additional RS485 interface for the base unit, which allows for the configuration of RS485 1:n multidrop, parallel link or peer-to-peer networks with LX1N/LX2N systems. The board is inserted into the base unit's expansion slot, making it easy to install and use.

With the TX1N-485-BD-2, it is also possible to transfer data directly to other RS485 peripherals using the RS dedicated instruction. In peer-to-peer network configurations, the interface adapter enables active communication between the individual LX1N/LX2N controllers via the RS485 interfaces. This allows for efficient data transfer and communication between multiple devices.

In 1:n multidrop networks, the adapter can be used to provide communication with a host master station of the A series. This allows the LX1N/LX2N PLCs to communicate with other devices on the network and enables integration with other systems.

Overall, the TX1N-485-BD-2 provides a simple and reliable way to expand the communication capabilities of LX1N/LX2N series PLCs. It is a versatile solution for a range of applications that require RS485 communication capabilities.

The TX1N-485-BD-2 RS485 serial communication expansion board is applicable for use with both LX1S/LX1N and LX2N base units. The board conforms to the standards of LX1S/LX1N/LX2N base units and is powered by a 5V DC / 60mA power supply from the base unit.

The communication interface of the board supports both RS485 and RS422 protocols, with a communication speed of 300-19,200 bits/s. The communication cable used is twisted-pair, and the maximum communication distance is 50 meters.

The board supports Protocol 1 or 4 of AJ71UC24, as well as no protocol, parallel link, and peer-to-peer network communication protocols. The related I/O points for the board are Station 0, with 0 points.

The weight of the board is 0.02 kg for LX1S/LX1N base units and 0.08 kg for LX2N base units. The dimensions of the board are 43 x 38.5 x 22 mm for LX1S/LX1N base units and 35 x 54 x 22 mm for LX2N base units.
